Cape Hatteras Lighthouse

History

History information is some background and history about the location. This is meant to be a basic summary. Below the history records you will find sources in which you can click on to find out more information. There may be multiple history records per location.

---

Construction of a lighthouse at Cape Hatteras was first authorized in 1794 when Congress recognized the danger posed to Atlantic shipping. However, construction did not begin until 1799. The first lighthouse was lit in October of 1803. Made of sandstone, it was 90 feet tall with a lamp powered by whale oil.

The 1803 lighthouse was unable to effectively warn ships of the dangerous Diamond Shoals because it was too short, the unpainted sandstone blended in with the background, and the signal was not strong enough to reach mariners. Additionally, the tower was poorly constructed and maintained. Frequent complaints were made regarding the lighthouse.

In 1853, following studies made by the Lighthouse Board, it was decided to add 60 feet to the height of the lighthouse, thereby making the tower 150 feet tall. The newly extended tower was then painted red on top of white, making the lighthouse more recognizable during the day. At the same time, the tower was retrofitted with a first-order Fresnel lens, which used refraction as well as reflection to channel the light, resulting in a stronger beam.

By the 1860s, with the need for extensive repairs, Congress decided to appropriate funds for a new lighthouse. The Lighthouse Board prepared plans and specifications, and construction on the new lighthouse began in October of 1868.

Since the lighthouse was built before the present-day pile driver was perfected, an interesting problem immediately arose. The groundwater levels on the Outer Banks are quite high, and therefore, when they began digging out the pit for the lighthouse foundation, it filled with water about 4 feet down. Working with the natural conditions, the foreman, Dexter Stetson, used a “floating foundation” for the Cape Hatteras Lighthouse. This meant that layered 6-foot x 12-foot yellow pine timbers were laid crossways in the foundation pit below the water table. Granite plinths (rock layers) were placed on top of the timbers.

The new lighthouse was lit on December 16, 1870. The 1803 lighthouse was demolished in February of 1871. The Cape Hatteras Lighthouse received the famous black and white stripe daymark pattern in 1873. The Lighthouse Board assigned each lighthouse a distinctive paint pattern (daymark) and light sequence (nightmark) to allow mariners to recognize it from all others during the day and night as they sailed along the coast.

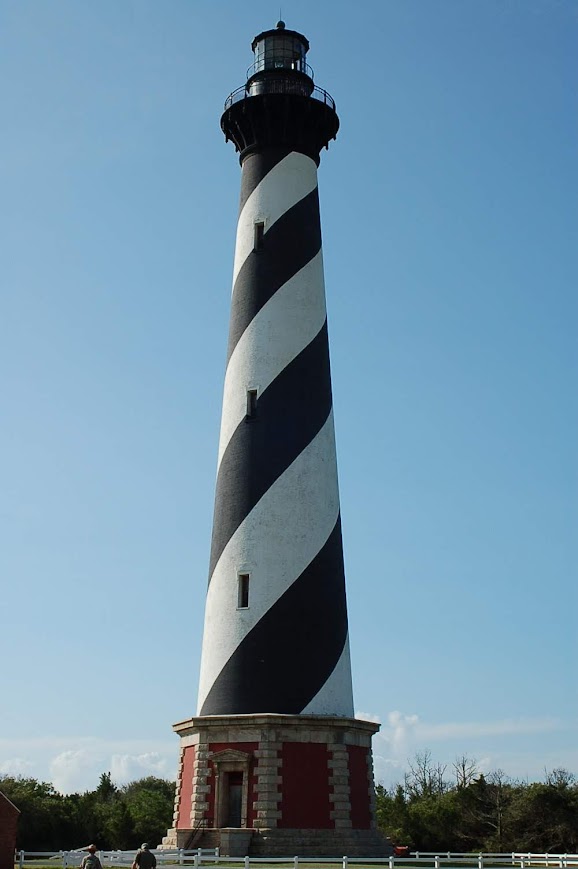

The lighthouse is a conical brick structure rising from an octagon-shaped brick and granite base and topped with an iron and glass lantern. It is the tallest brick lighthouse in the United States and measures 198.49 feet from the bottom of the foundation to the top of the pinnacle of the tower. This height was needed to extend the range of the light beam from the tower’s low-lying beach site. The tower’s sturdy construction includes exterior and interior brick walls with interstitial walls resembling the spokes of a wheel. There are 269 steps from the ground to the lens room of the lighthouse.

The Fresnel lens installed in the 1870 lighthouse was powered by kerosene and could be seen approximately 16 miles from the shore. The keeper had to manually rewind the clockwork apparatus each day. The Fresnel lens usually took 12 hours for a complete cycle. When the lamp was electrified in 1934, the manual mechanism was no longer needed. Damaged by vandals, the giant glass Fresnel lens had to be replaced by a modern aero beacon in 1950. Today, electricity provides the rotating power, and a photocell turns the light on and off.

Due to threatening beach erosion, the Bureau of Lighthouses decommissioned the Cape Hatteras Lighthouse in 1935. The beacon was then moved to a skeletal steel tower until 1950. On November 9, 1937, the Cape Hatteras Light Station was transferred to the National Park Service. While the park was not operational at this time, the lighthouse and the keepers' quarters became part of the nation’s first National Seashore.

Added by: sdonley on 03/26/2025 DB#:706
Source(s):
https://www.nps.gov/caha/planyourvisit/chls.htm

---
